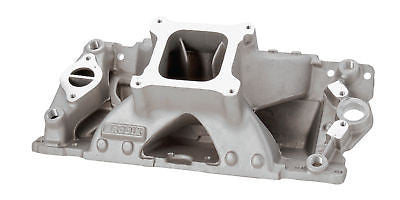

BRODIX SBC HVH SERIES 23/ SINGLE PLANE INTAKE MANIFOLDS HV1000-HV1014

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.

     PART # HV1000 HEIGHT 6.225 MAKE OFFER PER 1

• FITS BRODIX -8, -10, -11, -11X, AND TRACK 1 HEADS
• USES FP 1206 OR CO C5414 GASKET
• 4000 - 8000 RPM RANGE
• 4150 SERIES TOP

     PART # HV1005 HEIGHT 6.540 MAKE OFFER PER 1

• FITS BRODIX -10X AND PONTIAC 867 HEADS
• USES FP 1263 (TRIM TO FIT) OR CO C5426 GASKET
• 4000 - 8000 RPM RANGE
• 4150 SERIES TOP FOR RI HEAD

     PART # HV1008 HEIGHT 6.240 MAKE OFFER PER 1

• FITS UNPORTED CAST IRON HEADS
• USES FP 1204 OR CO 5416 GASKET
• 4000 - 8000 RPM RANGE
• 4150 SERIES TOP

     PART # HV1009 HEIGHT 6.225 MAKE OFFER PER 1

• FITS BRODIX -8, -10, -11, -11X, AND TRACK 1 HEADS
• MUST BE USED WITH A 390 CARBURETOR
• USES FP 1206 OR CO 5416 GASKET
• 4000 - 8000 RPM RANGE
• 4150 SERIES TOP

     PART # HV1009-46 HEIGHT 6.225 MAKE OFFER PER 1

• FITS IMCA SPEC. HEADS (46-221)
• MUST BE USED WITH 390 CARBURETOR
• USES FP 1206 OR C5416 GASKET
• 390 TOP IMCA

     PART # HV1010 HEIGHT 6.545 MAKE OFFER PER 1

• FITS BRODIX -10 AND PONTIAC 867 HEADS
• MUST BE USED WITH 390 CARBURETOR
• USES FP 1263 (TRIM TO FIT) OR CO 5426 GASKET
• 3500 - 7500 RPM RANGE
• 390 TOP FOR RI HEAD

     PART # HV 1011 HEIGHT 5.875 MAKE OFFER PER 1

• FITS CHEVROLET CAST IRON HEADS
• SMALL PORT VERSION OF THE HV 1000
• USES FP 1204 OR CO C5416 GASKET
• 3500 - 7200 RPM RANGE
• 4150 SERIES TOP

     PART # HV 1014 HEIGHT 5.845 MAKE OFFER PER 1

• FITS BRODIX -8, -10, -11, -11X, AND TRACK 1 HEADS
• SMALL PORT VERSION OF THE HV 1000
• USES FP 1206 OR CO C5414 GASKET
• 3500 - 7200 RPM RANGE
• 4150 SERIES TOP

• 12.95 shipping 48 states

• Layaway terms available

• No one sells BRODIX for less.

• We handle the complete BRODIX line.

• We are open from 9:00 AM to 10:00 PM.

After purchasing, pay instantly with your credit card through PayPal!
