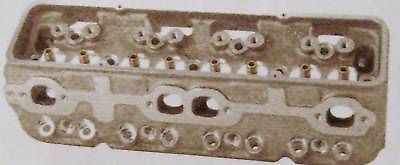

BRODIX IK SERIES CYLINDER HEADS/23 1028102

Regular price $ 2,288.71

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.

You have spoken and we have listened… these small block Chevy compatible heads offer the only two things that matter… performance and price! The features for the IK® 180 / 200 include a revolutionary ultra casting, versatile 180 cc or 200 cc intake ports that are specifically designed for optimum versatility, and 64 cc or 70 cc combustion chambers that allow the use of several types of fuels. The all new 100% CNC ported "Wild Thing" (KC IK 210) bridges the gap between our Pro Street heads and our complete line of race heads. These heads feature 210 cc intake ports and flow 288 cfm while utilizing all standard components. Standard features are A-356 virgin aluminum alloy, phosphorous bronze valve guides, valve seats for use with unleaded fuel, ends milled and drilled for accessories, and a straight spark plug angle. The combustion chambers are available as large as 74 cc. These are the most affordable high quality aluminum cylinder heads on the market.

PACKAGE HEADS:

PS CB: VALVE BOWLS BLENDED • PS MI: MATCH INTAKE PORT TO FP 1204 (IK 180) MATCH INTAKE PORT TO FP 1206 (IK 200) MATCH INTAKE PORT TO FP 1205 (KC IK 210) • PS Valve Job: COMPETITION VALVE JOB • Intake Valves: 2.020 X 4.920 o.a.l. - BR 6170DI (IK 180, IK 200) 2.080 X 4.965 o.a.l. - BR 81019 (KC IK 210) • Exhaust Valves: 1.600 X 4.920 o.a.l. - BR 6169DI (IK 180, IK 200) 1.600 X 4.965 o.a.l. - BR 81021 (KC IK 210) • Valve Springs: 1.250 HYDRAULIC VALVE SPRING - CC 981, 100 lb CLOSED, 300 lb OPEN, 1.850 INSTALLED HEIGHT, .525 MAXIMUM LIFT (IK 180, IK 200) 1.470 HYDRAULIC ROLLER VALVE SPRING - CC 987, 125 lb CLOSED, 325 lb OPEN, 1.900 INSTALLED HEIGHT, .575 MAXIMUM LIFT (IK 180, IK 200) 1.550 FLAT TAPPET VALVE SPRING - BT 120121,   140 lb CLOSED, 400 lb OPEN, 1.950 INSTALLED HEIGHT, .600 MAXIMUM LIFT (KC IK 210) • Retainers: 1.250 7° STEEL - CC 742 (IK 180, IK 200) 1.430 7° STEEL - CC 743 (IK 180, IK 200) 1.550 10° STEEL - CC 752 (KC IK 210) • Valve Locks: 7°- PI PF-555 (IK 180, IK 200) 10° JUMBO - CC 611 (KC IK 210) • Rocker Studs: 3/8 - BR 318S (IK 180, IK 200) 7/16 - BR 716L, AR RRS-4I (KC IK 210) • Guide Plates: 5/16 - CC 4808 • Valve Seals: 11/32 - US VS529V

FACTS AND RELATED COMPONENTS:

• Torque Rocker Studs: 40-45 ft-lb • Intake Gaskets: FEL-PRO 1204, COMETIC C5416 (IK 180) FEL-PRO 1206, COMETIC C5414 (IK 200) FEL-PRO 1205 (KC IK 210) • Head Gaskets: 350 - FEL-PRO 1003, COMETIC C5399 400 - FEL-PRO 1004, COMETIC C5403 • Exhaust Gaskets: FEL-PRO 1404, COMETIC C5415 (IK 180, IK 200) FEL-PRO 1406, COMETIC C5415 (KC IK 210) • Head Bolts: ARP 134-3601, MANLEY 42313 • Head Bolt Washers: MANLEY 42102 • Head Studs: ARP 134-4001 (6 pt) • Accessory Bolt Holes Are Drilled • Spark Plug Starting Points: CHAMPION RN12YC OR AUTOLITE 3924 FOR PUMP GAS NGK R5671A-8 FOR RACING GAS • Spring Pockets: MAY NOT BE CUT ANY LARGER OR DEEPER THAN 1.550 • Valve Angle: 23° • Angle Milling: .0078 in PER cc • Flat Milling: .0060 in PER cc • Angle Machining: NOT AVAILABLE• Dowel Shift: NOT AVAILABLE • Pushrod Slots: STANDARD • Stud Girdle: BR 6435 • Rocker Arms: STANDARD • Lifters: STANDARD

Cylinder Head Specification:

 INTAKE PORT CHAMBER VOLUME VALVE SIZES INT./EXH. PLUG ANGLE EXHAUST PATTERN VALVE CENTERLINE INTAKE MANIFOLD

 IK 180      180 cc                    64 cc /70                     2.020/1.600                     Straight                     Standard                       Standard                          HP-1 / HV 1016

IK 200       200 cc                    64cc /70                      2.050/1.600                     Straight                     Standard                       Standard                       HV 1014 / HV 1016



IK 210      210 cc                        75 cc                         2.080/1.600                     Straight                      Standard                      Standard                       HV 1014 / HV 1016

CUBIC INCH COMPRESSION        CAMSHAFT               RPM  APPLICATION

IK 180       355 - 406        9.5 -10.5                            10.5 Hydraulic                         6000                   Street

IK 200       355 - 406        9.5- 10.5          10.5 Hydraulic Roller/Flat Tappet idle          6500          Street / Pro Street

KC IK 210 355 - 406        9.5-10.5           10.5Hydraulic Roller/Flat Tappet Idle          6500          Street / Pro Street

Flow Chart CFM @ 28" H20

              VALVE SIZE                              0.200               0.300             0.400               0.500             0.600               0.650              0.700

IK180                         2.020 INTAKE     138              188             234              243             245

                       1.600 EXHAUST 112             149             167             175            178

IK 200             2.020 INTAKE     123              181             230              253             261             000

                       1.600  EXHAUST 100              145             164             171             176              000

KC IK 210      2.080 INTAKE     148              217              260             278             284              285             287

(CNC Ported) 1.600 EXHAUST  110              166              200             214             219              222             224

Basic easy order numbers:

KC IK 210 Pkg 210 cc Intake Runner 1028102 MAKE OFFER PER 2
