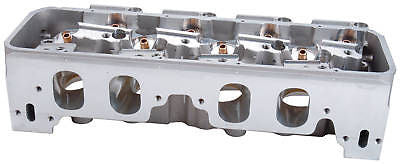

BRODIX BP PB 1803 SERIES BIG BLOCK CHEVY COMPLETE CYLINDER HEAD/18 2188104

Regular price $ 4,213.97

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.

The 18° Pro Stock style cylinder heads from BRODIX are the Big Dukes. The PB 1800 and PB

1801 were the original designs in this legendary series. The PB 1802 is a cast ported version

of the PB 1800 capable of flowing over 480 cfm. The professionals at BRODIX have contoured

each intake port, exhaust port, and combustion chamber to flow its maximum potential out of

the box. The revolutionary PB 1803 cylinder heads from BRODIX feature oval intake ports, CNC

combustion chambers, and use all standard components for the 18° Pro Stock head excluding

the manifold. For the KC PB 1803, BRODIX contacted the best head porters in the business to

incorporate our porting design into a 100% CNC ported masterpiece. The PB 1803 utilizes an

as-cast intake port that delivers outstanding out-of-the-box performance. Copper valve seats

and a 55° seat angle make either head an excellent choice when looking for serious torque and

horsepower. All Big Duke series heads require special pistons, valve covers, head studs, shaft

rockers, and intake manifold.

Package Heads:

• PS CB: VALVE BOWLS BLENDED • PS MI: MATCH INTAKE PORT TO FP 1298 (PB 1800-1802) MATCH INTAKE PORT TO BRODIX MG 2013 (PB 1803) • PS Valve Job: COMPETITION VALVE JOB • Intake Valves: 2.400 X 6.600 o.a.l. - BR 81660, 45° SEAT ANGLE (PB 1800-1802) 2.450 X 6.650 o.a.l. - BR 81665, 55° SEAT ANGLE (PB 1803) • Exhaust Valves: 1.900 X 6.450 o.a.l. - BR 81645, 45° SEAT ANGLE (PB 1800-1802) 1.860 X 6.550 o.a.l. - BR 81685, 55° SEAT ANGLE (PB 1803) • Valve Springs: 1.625 ROLLER VALVE SPRING - MA 221424, 260 lb CLOSED, 790 lb OPEN, 2.100 INSTALLED HEIGHT, .800 MAXIMUM LIFT 1.645 ROLLER VALVE SPRING - CC 948, 315 lb CLOSED, 915 lb OPEN, 2.100 INSTALLED HEIGHT, .850 MAXIMUM LIFT • Retainers: 1.625 10° TITANIUM - MA 23640 1.645 10° TITANIUM - MA 2001 • Valve Locks: 10° JUMBO - CC 611 • Rocker Studs: SHAFT SYSTEM REQUIRED • Valve Seals: 11/32 - US VS529V (1.625 VALVE SPRING) 11/32 - US VS485V (1.645 VALVE SPRING)

Facts And Related Components:

• Torque Heads: 70 ft-lb • Torque Rocker Studs: 40-45 ft-lb • Intake Gaskets: FEL-PRO 1298, COMETIC C5419 (PB 1800-1802) BRODIX MG 2013 (PB 1803, BP PB 1803) • Head Gaskets: 4.540 - FEL-PRO 1017, COMETIC C5433 4.600 - FEL-PRO 1057, COMETIC C5434 • Exhaust Gaskets: FEL-PRO 1412, COMETIC C5418 • Head Studs: ARP 235-4712 (12 pt) • Accessory Bolt Holes Are Drilled • Spark Plug Starting Points: NGK R5671A-10 FOR ALCOHOL NGK R5671A-9 FOR RACING GAS • Spring Pockets: MAY NOT BE CUT ANY LARGER OR DEEPER THAN 1.750 • Valve Angle: 18° AND 4° INTAKE, 9° AND 4° EXHAUST • Angle Milling: NOT AVAILABLE • Flat Milling: .0055 in PER cc • Angle Machining: NOT AVAILABLE • Dowel Shift: NOT AVAILABLE • Pushrod Slots: STANDARD • Rocker Arms: SHAFT SYSTEM - T&D 3036, JESEL KPS 22797 • Lifters: STANDARD • Pistons: STANDARD 18° X 9° VALVE ANGLE • Pushrods: CHECK PUSHROD CLEARANCE WITH HEAD INSTALLED ON THE ENGINE BLOCK BEFORE FINAL ASSEMBLY • 4.375 MINIMUM BORE

Cylinder Head Specifications:

 INTAKE PORT  CHAMBER VOLUME  VALVE SIZES INTAKE/EXHAUST  EXHAUST PATTERN  INTAKE MANIFOLD

PB 1801        375 cc              89 cc                    2.400/1.900               Standard           PM 1800 / PM 1810 / PM 1903**/ PM 1913**

PB 1800       415 cc               89 cc                    2.400/1.900               Standard           PM 1800 / PM 1810 / PM 1903** / PM 1913**

PB 1802       456 cc               91 cc                    2.400/1.900               Standard           PM 1800 / PM 1810 / PM 1903** / PM 1913**

PB 1803       413 cc               95 cc                    2.450/1.860               Standard           PM 1803 / PM 1813 / PM 1903 / PM 1913

BP PB 1803 410 cc          95 cc / 91 cc *          2.450TI/1.860TI        Standard           PM 1803 / PM 1813 / PM 1903 / PM 1913

*Chamber Volume With Stealth Titanium Valves

** Oval Port Manifold MUST Be Port Matched to Fit Rectangular Port Heads

Cylinder Head Recommendations:

                                                CUBIC INCH       COMPRESSION          CAMSHAFT          RPM              APPLICATION

PB 1801            522 - 555            13.5 Minimum               Roller               4500 - 7500              Pro Street / Drag Race / Truck Puller

PB 1800            540 - 632            13.5 Minimum               Roller               4500 - 7500              Pro Street / Drag Race / Truck Puller

PB 1802            555 - 632            13.5 Minimum               Roller               4500 - 7500              Pro Street / Drag Race / Truck Puller

PB 1803            522 - 632            13.5 Minimum               Roller               4500 - 7500              Pro Street / Drag Race / Truck Puller

BP PB 1803      522 - 632            13.5 Minimum                Roller              4500 - 7500              Pro Street / Drag Race / Truck Puller

Flow Chart CFM @ 28" H20

                                         VALVE SIZE     0.200      0.300        0.400        0.500        0.600         0.700         0.800           0.900

PB 1801 (Hand Ported)  2.400 INTAKE     162           245            312             367            411             442             463

4.500 BORE                   1.900 EXHAUST  129           180            222             269            301             308             315

PB 1800                          2.400 INTAKE     117           184             256             328            391             435             453

4.600 BORE                   1.900 EXHAUST 113           166              211            239             252             259             264

PB 1802                          2.400 INTAKE     135           205             280             351            409             449             480

4.600 BORE                   1.900 EXHAUST 100            151             193            234             265             296             306

PB 1802 (CNC               2.400 INTAKE     156            230             305            361             414             453             476

Combustion Chambers) 1.900 EXHAUST 135            180             219            252              294             306            313

PB 1803 (CNC               2.450 INTAKE     137            217             296            362             418              464            484             490

Combustion Chambers) 1.860 EXHAUST 110            162             204             238             265             288             320             328

BP PB 1803                    2.450 INTAKE    145             224            300             369             425             475             500             515

(CNC Ported)                 1.860 EXHAUST 126            172             211             245             270             318             338             351

BASIC EASY ORDER NUMBER:

• BP PB 1803 Pkg 410 cc Intake Runner TI valves 2188104 MAKE OFFER PER 1

  • Free shipping 48 states

  • Layaway terms available

  • No one sells BRODIX for less.

  • We handle the complete BRODIX line.

  • We are open from 9:00 AM to 10:00 PM.

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.

    CONTACT US THE PRICE IS NEGOTIABLE BEST OFFER
