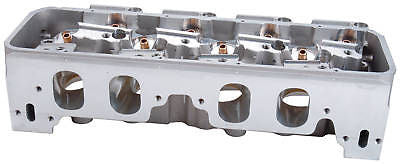

BRODIX BP PB 1803 Cylinder Heads/18 2188103

Regular price $ 3,293.08

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.

The 18° Pro Stock style cylinder heads from BRODIX are the Big Dukes. The PB 1800 and PB

1801 were the original designs in this legendary series. The PB 1802 is a cast ported version

of the PB 1800 capable of flowing over 480 cfm. The professionals at BRODIX have contoured

each intake port, exhaust port, and combustion chamber to flow its maximum potential out of

the box. The revolutionary PB 1803 cylinder heads from BRODIX feature oval intake ports, CNC

combustion chambers, and use all standard components for the 18° Pro Stock head excluding

the manifold. For the KC PB 1803, BRODIX contacted the best head porters in the business to

incorporate our porting design into a 100% CNC ported masterpiece. The PB 1803 utilizes an

as-cast intake port that delivers outstanding out-of-the-box performance. Copper valve seats

and a 55° seat angle make either head an excellent choice when looking for serious torque and

horsepower. All Big Duke series heads require special pistons, valve covers, head studs, shaft

rockers, and intake manifold.

Package Heads:

• PS CB: VALVE BOWLS BLENDED • PS MI: MATCH INTAKE PORT TO FP 1298 (PB 1800-1802) MATCH INTAKE PORT TO BRODIX MG 2013 (PB 1803) • PS Valve Job: COMPETITION VALVE JOB • Intake Valves: 2.400 X 6.600 o.a.l. - BR 81660, 45° SEAT ANGLE (PB 1800-1802) 2.450 X 6.650 o.a.l. - BR 81665, 55° SEAT ANGLE (PB 1803) • Exhaust Valves: 1.900 X 6.450 o.a.l. - BR 81645, 45° SEAT ANGLE (PB 1800-1802) 1.860 X 6.550 o.a.l. - BR 81685, 55° SEAT ANGLE (PB 1803) • Valve Springs: 1.625 ROLLER VALVE SPRING - MA 221424, 260 lb CLOSED, 790 lb OPEN, 2.100 INSTALLED HEIGHT, .800 MAXIMUM LIFT 1.645 ROLLER VALVE SPRING - CC 948, 315 lb CLOSED, 915 lb OPEN, 2.100 INSTALLED HEIGHT, .850 MAXIMUM LIFT • Retainers: 1.625 10° TITANIUM - MA 23640 1.645 10° TITANIUM - MA 2001 • Valve Locks: 10° JUMBO - CC 611 • Rocker Studs: SHAFT SYSTEM REQUIRED • Valve Seals: 11/32 - US VS529V (1.625 VALVE SPRING) 11/32 - US VS485V (1.645 VALVE SPRING)

Facts And Related Components:

• Torque Heads: 70 ft-lb • Torque Rocker Studs: 40-45 ft-lb • Intake Gaskets: FEL-PRO 1298, COMETIC C5419 (PB 1800-1802) BRODIX MG 2013 (PB 1803, BP PB 1803) • Head Gaskets: 4.540 - FEL-PRO 1017, COMETIC C5433 4.600 - FEL-PRO 1057, COMETIC C5434 • Exhaust Gaskets: FEL-PRO 1412, COMETIC C5418 • Head Studs: ARP 235-4712 (12 pt) • Accessory Bolt Holes Are Drilled • Spark Plug Starting Points: NGK R5671A-10 FOR ALCOHOL NGK R5671A-9 FOR RACING GAS • Spring Pockets: MAY NOT BE CUT ANY LARGER OR DEEPER THAN 1.750 • Valve Angle: 18° AND 4° INTAKE, 9° AND 4° EXHAUST • Angle Milling: NOT AVAILABLE • Flat Milling: .0055 in PER cc • Angle Machining: NOT AVAILABLE • Dowel Shift: NOT AVAILABLE • Pushrod Slots: STANDARD • Rocker Arms: SHAFT SYSTEM - T&D 3036, JESEL KPS 22797 • Lifters: STANDARD • Pistons: STANDARD 18° X 9° VALVE ANGLE • Pushrods: CHECK PUSHROD CLEARANCE WITH HEAD INSTALLED ON THE ENGINE BLOCK BEFORE FINAL ASSEMBLY • 4.375 MINIMUM BORE

Cylinder Head Specifications:

   INTAKE PORT CHAMBER VOLUME VALVE SIZES INTAKE/EXHAUST EXHAUST PATTERN INTAKE MANIFOLD

PB 1801       375 cc            89 cc                    2.400/1.900             Standard               PM 1800 / PM 1810 / PM 1903**/ PM 1913**

PB 1800       415 cc            89 cc                    2.400/1.900             Standard               PM 1800 / PM 1810 / PM 1903** / PM 1913**

PB 1802       456 cc            91 cc                    2.400/1.900             Standard               PM 1800 / PM 1810 / PM 1903** / PM 1913**

PB 1803       413 cc            95 cc                    2.450/1.860             Standard               PM 1803 / PM 1813 / PM 1903 / PM 1913

BP PB 1803 410 cc            95 cc / 91 cc *     2.450/1.860              Standard               PM 1803 / PM 1813 / PM 1903 / PM 1913

*Chamber Volume With Stealth Titanium Valves

** Oval Port Manifold MUST Be Port Matched to Fit Rectangular Port Heads

Cylinder Head Recommendations:

                     CUBIC INCH COMPRESSION   CAMSHAFT         RPM                             APPLICATION

PB 1801        522 - 555            13.5 Minimum                Roller              4500 - 7500                Pro Street / Drag Race / Truck Puller

PB 1800        540 - 632            13.5 Minimum                Roller              4500 - 7500                Pro Street / Drag Race / Truck Puller

PB 1802        555 - 632            13.5 Minimum                Roller              4500 - 7500                Pro Street / Drag Race / Truck Puller

PB 1803        522 - 632            13.5 Minimum                Roller               4500 - 7500               Pro Street / Drag Race / Truck Puller

BP PB 1803  522 - 632            13.5 Minimum                Roller               4500 - 7500               Pro Street / Drag Race / Truck Puller

Flow Chart CFM @ 28" H20

                                         VALVE SIZE          0.200         0.300          0.400          0.500         0.600           0.700          0.800           0.900

PB 1801 (Hand Ported)  2.400 INTAKE      162             245             312             367             411             442             463

4.500 BORE                   1.900 EXHAUST   129             180             222             269             301             308             315

PB 1800                          2.400 INTAKE       117             184             256            328              391             435            453

4.600 BORE                   1.900 EXHAUST   113             166             211             239             252             259             264

PB 1802                          2.400 INTAKE      135              205             280             351             409             449             480

4.600 BORE                   1.900 EXHAUST  100              151             193             234             265             296             306

PB 1802 (CNC               2.400 INTAKE      156              230             305             361             414             453             476

Combustion Chambers) 1.900 EXHAUST  135              180             219             252             294              306             313

PB 1803 (CNC               2.450 INTAKE      137              217             296             362             418             464             484             490

Combustion Chambers) 1.860 EXHAUST  110              162              204             238            265              288             320             328

BP PB 1803                    2.450 INTAKE     145              224              300             369             425             475             500             515

(CNC Ported)                 1.860 EXHAUST  126              172              211             245             270             318             338             351
