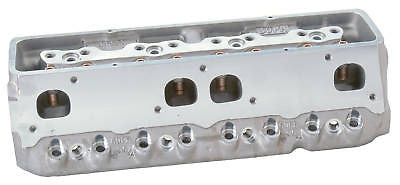

BRODIX ASCS/SUPR SERIES CYL. HEADS CHEVY - FORD - MOPAR 1110002-1110003

Regular price $ 3,610.84

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.

The BRODIX Spec. heads are made for tracks wanting cylinder heads that are cost effective and
equal for all competitors. These cylinder heads are very durable and user-friendly. Replaceable
phosphorous bronze guides are installed along with ductile iron seats. The Spec. head is 100%
CNC machined. Do not cut spring seats any larger or deeper than 1.550. Contact your local
association for exact rules. Please advise BRODIX of your track affiliation.
Package Heads:

• PS CB: VALVE BOWLS BLENDED • PS MI: MATCH INTAKE PORT TO FP 1206 (CH) MATCH INTAKE PORT TO FP 1262 (FO) MATCH INTAKE PORT TO FP 1213 (MO)
• PS Valve Job: COMPETITION VALVE JOB • Intake Valves: 2.080 X 4.965 o.a.l. - BR 81019 (FO) 2.080 X 5.065 o.a.l. - BR 60029 (CH OR MO) • Exhaust Valves: 1.600 X 4.965 o.a.l. - BR 81021 (FO) 1.600 X 5.065 o.a.l. - BR 60030 (CH OR MO) • Valve Springs: 1.550 ROLLER VALVE SPRING - GA 1000, 240 lb CLOSED, 550 lb OPEN, 1.950 INSTALLED HEIGHT, .700 MAXIMUM LIFT • Retainers: 1.550 10° TITANIUM - MA 2398BR • Valve Locks: 10° JUMBO - CC 611 • Rocker Studs: 7/16 - BR 716L, AR RRS-4I (CH OR FO) SHAFT SYSTEM REQUIRED (MO) • Guide Plates: 5/16 - BR 5160 (CH) 5/16 - BR 289351 (FO) NOT AVAILABLE (MO) • Valve Seals: 11/32 - US VS529V



Facts And Related Components:

• Torque Heads: 70 ft-lb WITH 7/16” STUDS • Torque Rocker Studs: 40-45 ft-lb (CH OR FO) • Torque Rocker Shaft: 30 ft-lb (MO) • Intake Gaskets: FEL-PRO 1206 (CH) FEL-PRO 1262 (FO) FEL-PRO 1213 (MO) • Head Gaskets: 350 - FEL-PRO 1003 (CH) FEL-PRO 1011-1 OR FEL-PRO 1011-2 (FO) FEL-PRO 1008 (MO) • Exhaust Gaskets: BRODIX MG 1500, COMETIC C5424 (CH) BRODIX MG 1351 (FO,“N” BOLT PATTERN) FEL-PRO 1413 (MO) • Head Studs: ARP 234-4301 (CH) ARP 154-4203 (FO) ARP 144-4204 (MO) • Accessory Bolt Holes Are Drilled Except on 27-222 / B1 BA SUPR • Spark Plug Starting Points: NGK R5671A-9 FOR ALCOHOL NGK R5671A-8 FOR RACING GAS • Spring Pockets: MAY NOT BE CUT ANY LARGER OR DEEPER THAN 1.550 • Valve Angle: 23° (CH) 20° (FO) 18° (MO) • Angle Milling: .0078 in PER cc (CH) NOT AVAILABLE (FO OR MO) • Flat Milling: .0060 in PER cc (CH OR FO) .0055 in PER cc (MO) • Angle Machining: NOT AVAILABLE • Dowel Shift: NOT AVAILABLE • Pushrod Slots: 40/60 SPACING (CH) 53/119 SPACING (FO) SPECIAL (MO) • Stud Girdle: 40/60, BRODIX BR 6440 (CH) 53/119, BRODIX BR 6430 (FO)
SHAFT SYSTEM REQUIRED (MO) • Rocker Arms: STANDARD (CH OR FO) SHAFT SYSTEM REQUIRED (MO) - T&D 8019, JESEL KPS 248102 • Lifters: STANDARD
• Pushrods: SPECIAL LENGTH

Cylinder Head Specification:

                                                    INT.              VAL.SIZES              PLUG            EXHAUST                  VALVE                     INTAKE

                                                   PORT              INT./EXH.               ANG.            PATTERN             CENTERLINE             MANIFOLD

11 SP X ASCS/SUPR*         215 cc          2.080/1.600           Angle        Spread Port              40/60               See Rule Book
27-223/T1 F STD X SUPR* 195 cc          2.080/1.600            Angle         “N” Style                 53/119             See Rule Book
27-222/B1 BA SUPR*          192 cc          2.080/1.600            Angle           Standard             Standard          See Rule Book
* Available in several versions to comply with rule requirements.
Please advise BRODIX sales staff of your track affiliation when ordering heads.

Flow Chart CFM @ 28" H20:

                                               VALVE SIZE            0.200            0.300          0.400           0.500           0.600            0.650           0.700

11 SP X ASCS/SUPR          2.080 INTAKE        130              187             232              265             267              269            270
                                                 1.600 EXHAUST    100              132            162              185              201              206            210
27-223/T1 F STD X SUPR  2.080 INTAKE        120              180             224              255             267              268            270
                                                 1.600 EXHAUST    103              130            159              179              191             198             202
27-222/B1 BA SUPR           2.080 INTAKE        129              180             221              249             263              267            269
                                                 1.600 EXHAUST    119             160             182              190             195              196            198

Basic easy order numbers:

11 SP X ASCS BARE 1110002 INT VOL 215 CHA VOL 67 MAKE OFFER PER 2

11 SP X SUPR BARE 1110003 INT VOL 215 CHA VOL 67 MAKE OFFER PER 2

  • Layaway terms available

  • Free shipping in the lower 48 states!

  • We handle the complete BRODIX line.

  • We are open from 9:00 AM to 10:00 PM.

  • WE CAN BEAT ANY PRICE ON BRODIX.

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.
    CONTACT US THE PRICE IS NEGOTIABLE BEST OFFER
