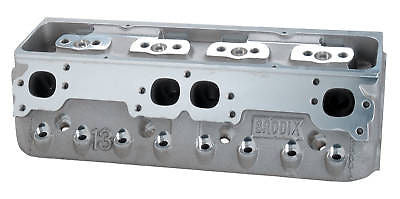

BRODIX -13c SERIES SMALL BLOCK CHEVY COMLETE CYLINDER HEADS/13 1238100

Regular price $ 12,771.92

CALL SHANON AT 507 445 3235 WITH ANY QUESTIONS.

With the introduction of the new KC 13, BRODIX adds yet another weapon to its arsenal of

cutting edge cylinder heads. Due to the use of our unique “Total Control” process, the KC

13 is unmatched in both quality and performance. It utilizes a 13° valve angle, moved valve

centerlines, and a 47 cc wet flow friendly combustion chamber. This 100% CNC ported offering

from BRODIX is destined to become the industry standard.


Package Heads:

• PS CB: VALVE BOWLS BLENDED • PS MI: MATCH INTAKE PORT TO BRODIX MG 1600 (TRIM TO FIT), MR. GASKET 143

• PS Valve Job: COMPETITION VALVE JOB • Intake Valves: 2.180 X 5.550 o.a.l. (50° SEAT ANGLE) • Exhaust Valves: 1.625 X 5.550 o.a.l. (45° SEAT ANGLE)

• Valve Springs: 1.550 ROLLER VALVE SPRING - GA 1000, 240 lb CLOSED, 550 lb OPEN, 1.950 INSTALLED HEIGHT, .700 MAXIMUM LIFT• Retainers: 1.550 10° TITANIUM - MA 2398BR

• Valve Locks: 10° JUMBO - CC 611 • Rocker Studs: SHAFT SYSTEM REQUIRED Valve Seals: 11/32 - US VS529V

FACTS AND RELATED COMPONENTS:

• Torque Heads: 70 ft-lb • Torque Rocker Studs: 40-45 ft-lb • Intake Gaskets: BRODIX MG 1600 (TRIM TO FIT), MR. GASKET 143 • Head Gaskets: 350 - FEL-PRO 1003, COMETIC C5399 400 - FEL-PRO 1004, COMETIC C5403 • Exhaust Gaskets: FEL-PRO

1407 • Head Studs: SK HSSB 13 (ALUMINUM BLOCK) • Accessory Bolt Holes Are Drilled • Spark Plug Starting Points: NGK R5671A-10 FOR ALCOHOL

NGK R5671A-9 FOR RACING GAS • Spring Pockets: 1.550 OUT OF THE BOX, MAY BE CUT TO 1.625 - NO LARGER OR DEEPER • Valve Angle: 13° • Angle Milling: .0065 in PER cc

• Flat Milling: .0055 in PER cc • Angle Machining: NOT AVAILABLE • Pushrod Slots: 85/134 • Stud Girdle: NOT AVAILABLE • Rocker Arms: SHAFT SYSTEM WITH 85/134 SPACING, CHECK HEADS

FOR INTAKE OFFSET - T&D 2126, JESEL KPS 32342 • Lifters: .180 OFFSET • Pistons: SPECIAL 13° • Pushrods: SPECIAL LENGTH • Intake Face Angle: 5°

Cylinder Head Specifications:

INTAKE PORT CHAMBER VOLUME VALVE SIZES INTAKE/EXHAUST EXHAUST PATTERN VALVE CENTERLINE INTAKE MANIFOLD

KC 13 STD    283 cc    47 cc    2.180 /1.625     Angle 18°    Standard 85/134      Edelbrock 2955/Edelbrock 2958

Cylinder Head Recommendations:

                                 CUBIC INCH            COMPRESSION          CAMSHAFT              RPM                                 APPLICATION

KC 13 STD          358 - 430          13.5 Minimum          Roller          4000 - 7500           Oval Track / Drag Race

Flow Chart CFM @ 28" H20

                              VALVE SIZE                                         0.200         0.300         0.400         0.500          0.600        0.700         0.800

KC 13 STD           2.180 X 50° INTAKE             159          239         307         352         359         364         370

(CNC Ported)       1.625 X 45° EXHAUST          113          164         213         236         247         258         263

BASIC EASY ORDER NUMBER:

• KC 13 STD Pkg Standard Exhaust 1238100 MAKE OFFER PER 2

  • Layaway terms available

  • Free shipping in the lower 48 states!
